iBMS Smart Shunt connection kit

Smart Shunt connection kit for iBMS:
When you have batteries/BMS that are not periodically fully charged and reset to 100%(usually in winter) the SOC can drift overtime, using a victron smart shunt to provide more accurate SOC solves this issue.

• Connects the Victron Smart Shunt to the iBMS boards.
• Provides more accurate SOC, voltage and current measurement.

• Smart shunt data e.g. SOC, current sent to Inverter/Victron.

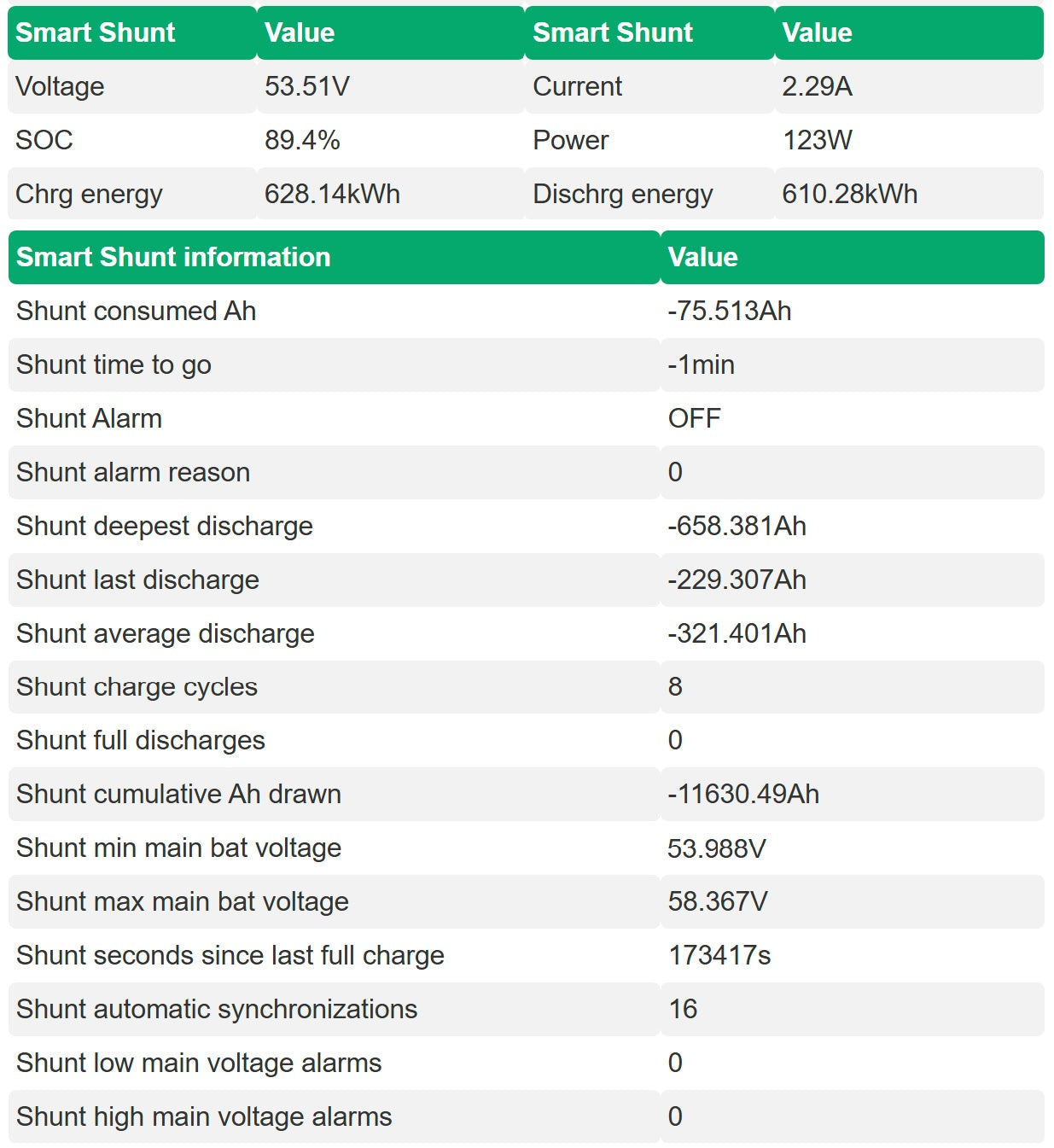

• All Smart shunt data available via iBMS webpage and Home Assistant.

• Can have multiple shunts, 1 per iBMS board(iBMS will combine the shunt data).
• New fully digital Version, with 50kV/us Fail-safe output now compatible with Smart Shut IP65.

• Could be used for isolation of other device, compatible with 3.3V or 5V input/output devices.

Supported Victron Smart Shunt models:
IP21: 300A, 500A, 1000A, 2000A
IP65: 300A, 500A, 1000A, 2000A

Includes:

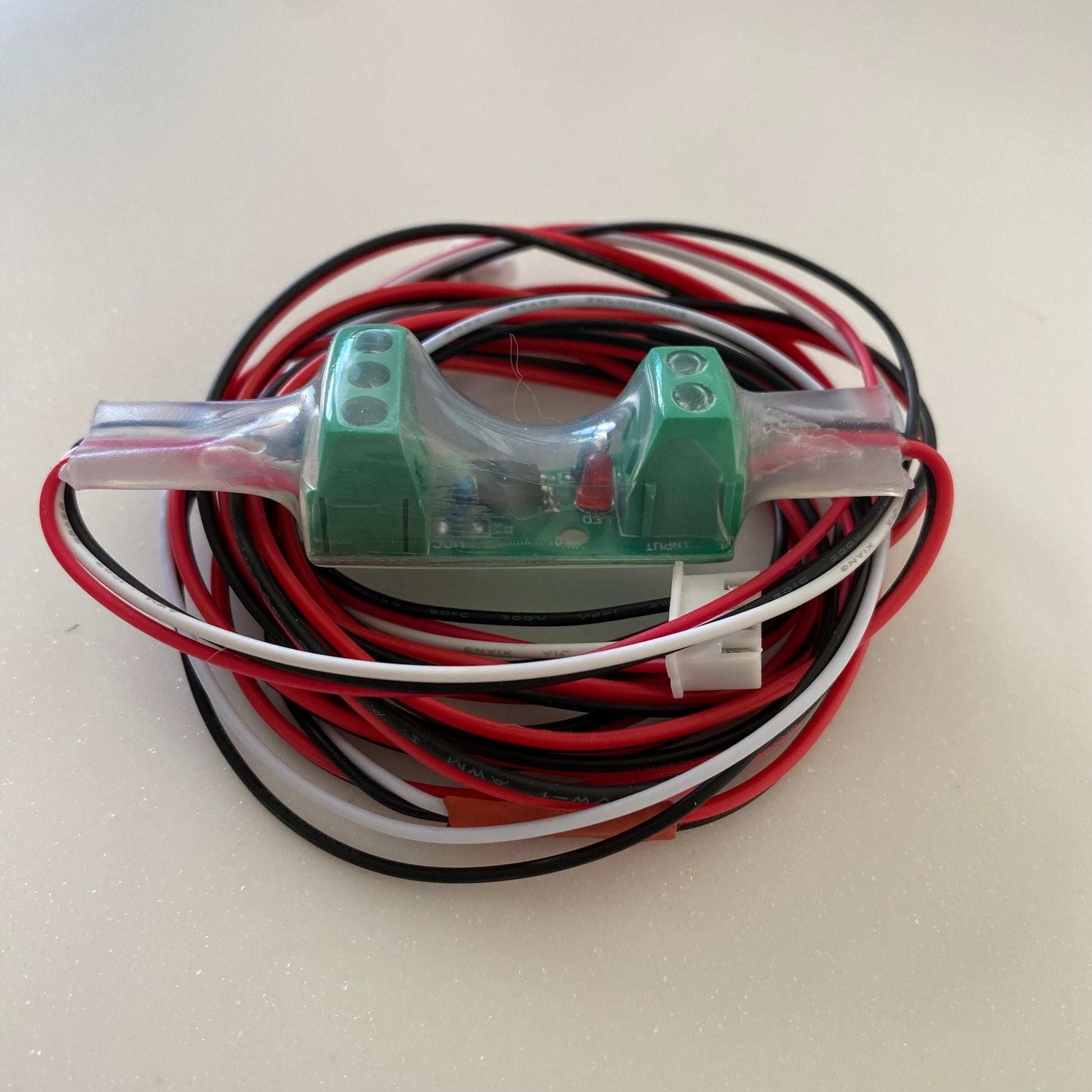

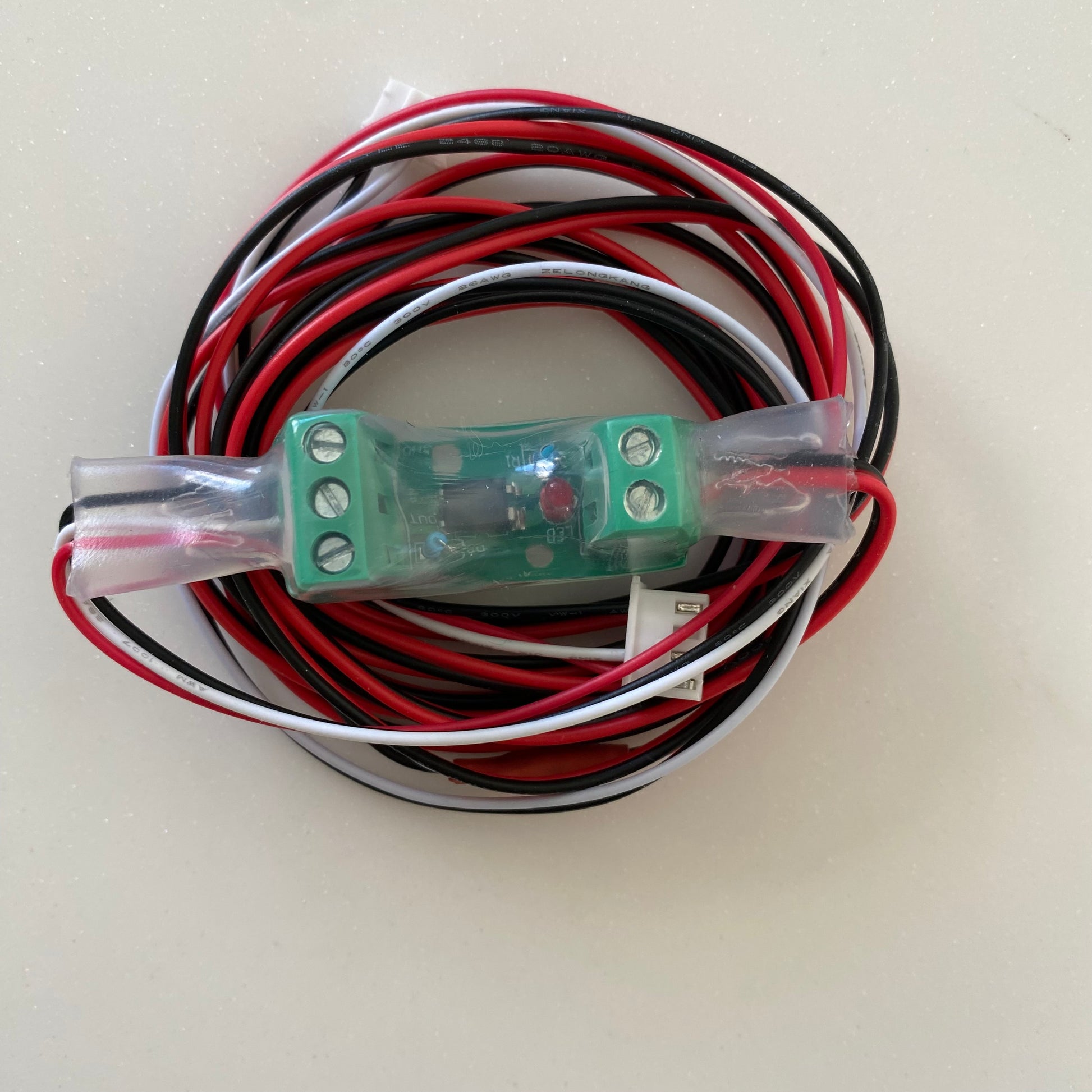

• Isolator board protected in heat shrink.
• iBMS to isolator 30cm cable
• Isolator to Smart Shunt 30cm cable
• Firmware upgrade to enable Smart Shunt functionality. (Please let me know the Chip ID of your iBMS if ordering separately)
• Note: cable length total is 60cm from iBMS to shunt.
  If you need a longer cable we have these 180cm cables.

Note: Must supply your own supported Victorn Smart Shunt.
CANNOT be the Lynx Shunt, as it does not have a VE.Direct interface required to receive the data into iBMS.

Requires an iBMS board version V3.7 or above. The iBMS board version is on the bottom left of the board.
If using with our enclosure, you can route the cable out between the RJ45 ports.

These are very labour intensive to make, 35 step process, including redesigned isolation board.
