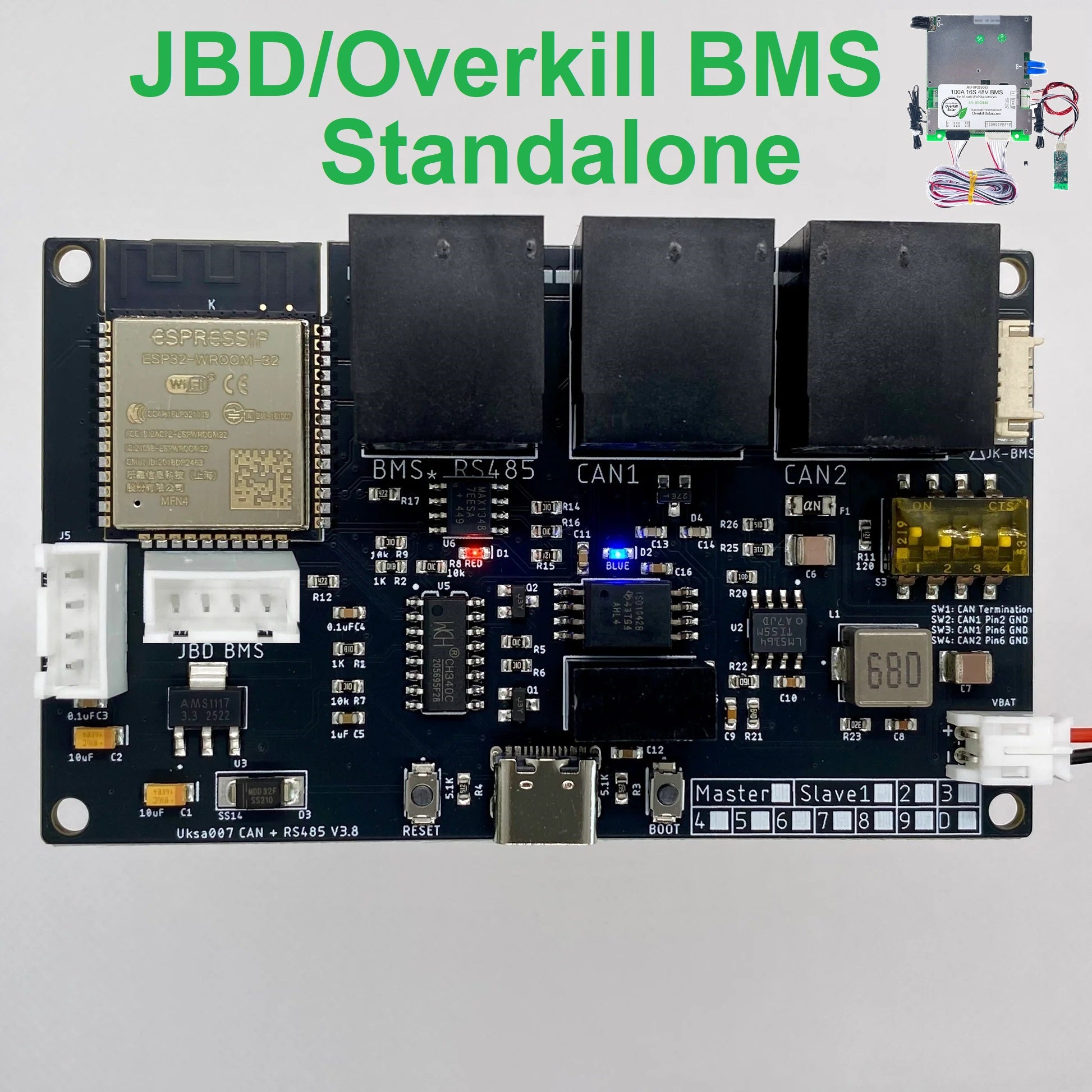

JBD/Overkill interface Standalone

Suitable for JBD/Overkill BMS that utilise the external Bluetooth module.

Standalone version, no Multi-BMS support at reduced cost.
Can be upgrade to Multi-BMS later for a fee.

iBMS: Interface for BMS

This all new Interface is designed with many features:

• Supports Most Inverters with CAN communications, profiles for: BYD, Deye, Generic, Goodwe, Pylon, Victron, LIA (beta)
• New iBMS firmware completely written in esp-idf using 100% my own code, no more esp-home.
• New companion Home Assistant integration(custom component must be installed)
• Web page designed for mobile phone size screens
• Standalone use, 1 BMS only.

• Improved CAN bus driver chip

• On board buck converter with fuse, can be powered direct from battery 12-95v using the supplied power cable.

• Professionally manufactured and burn in testing.


Supports most of the original JBD/Overkill models with the 4 pin Bluetooth connector eg: JBD-SP25S003, JBD-SP04S020, JBD-AP20S006 etc

Hardware connectors:
1 x 4 Pin JST connector for JBD/Overkill
1 x 4 Pin JST 2.0 connector for JBD
2 x RJ45 CAN for connection to Inverter and slaves with Multi-BMS upgrade

What's included:

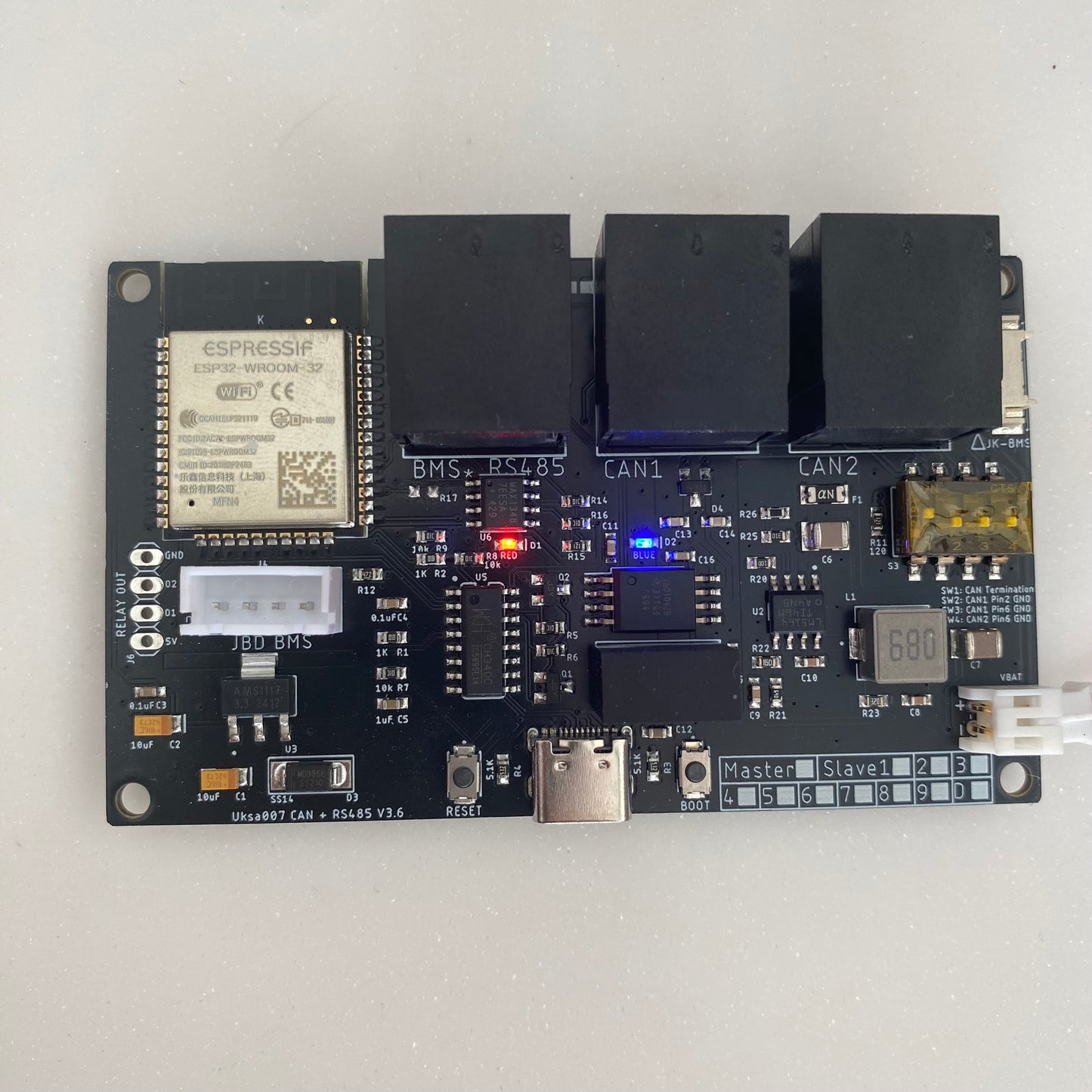

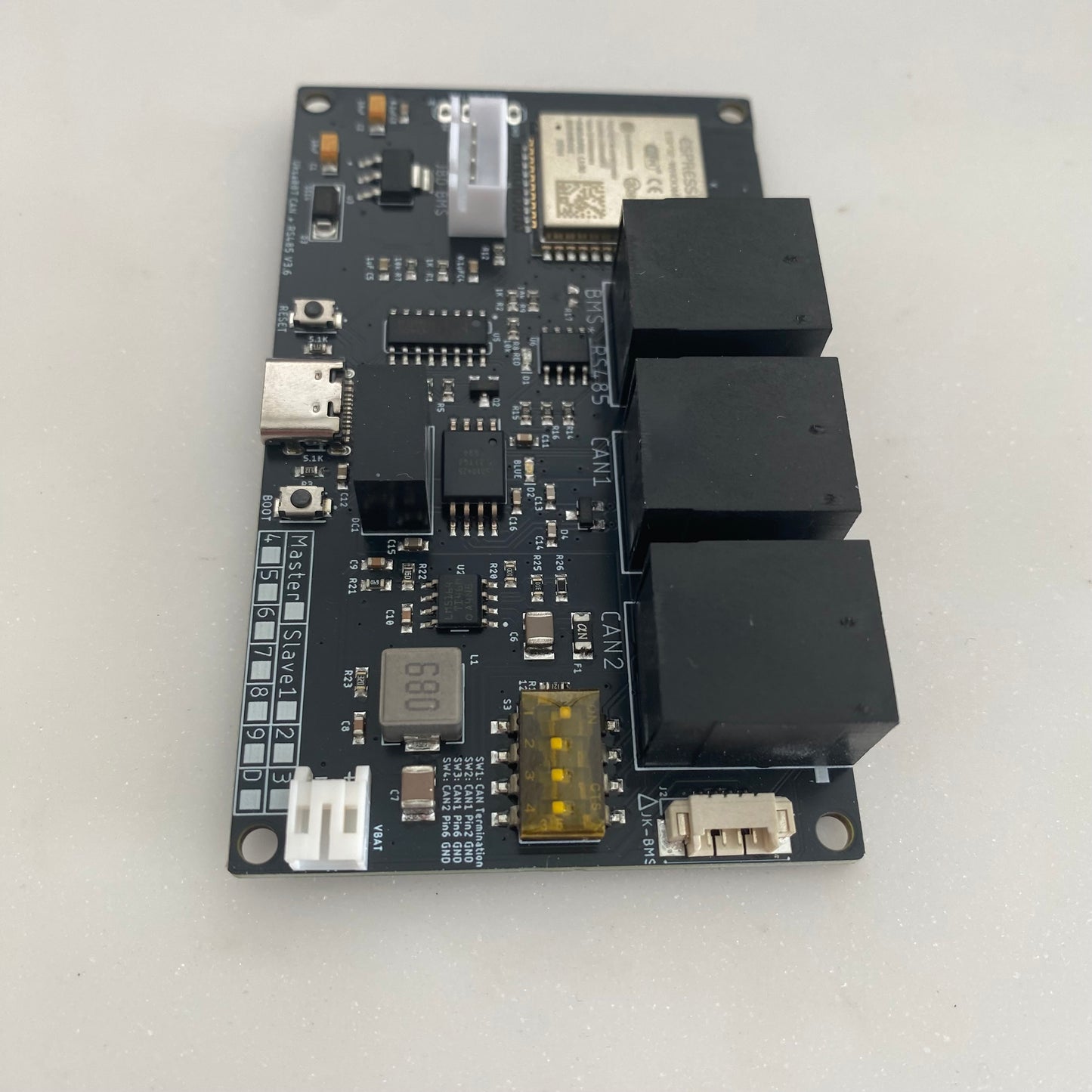

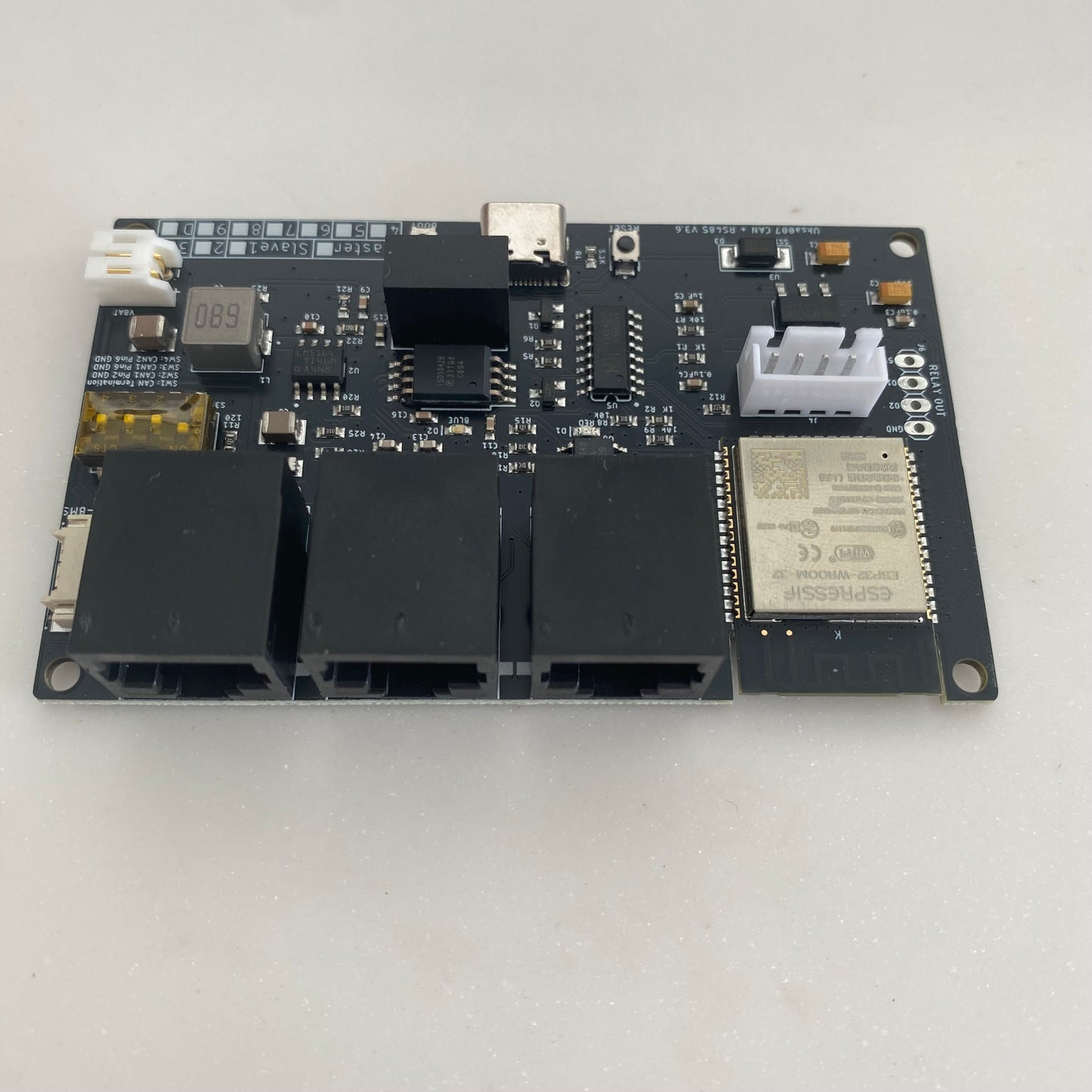

1 x iBMS interface board

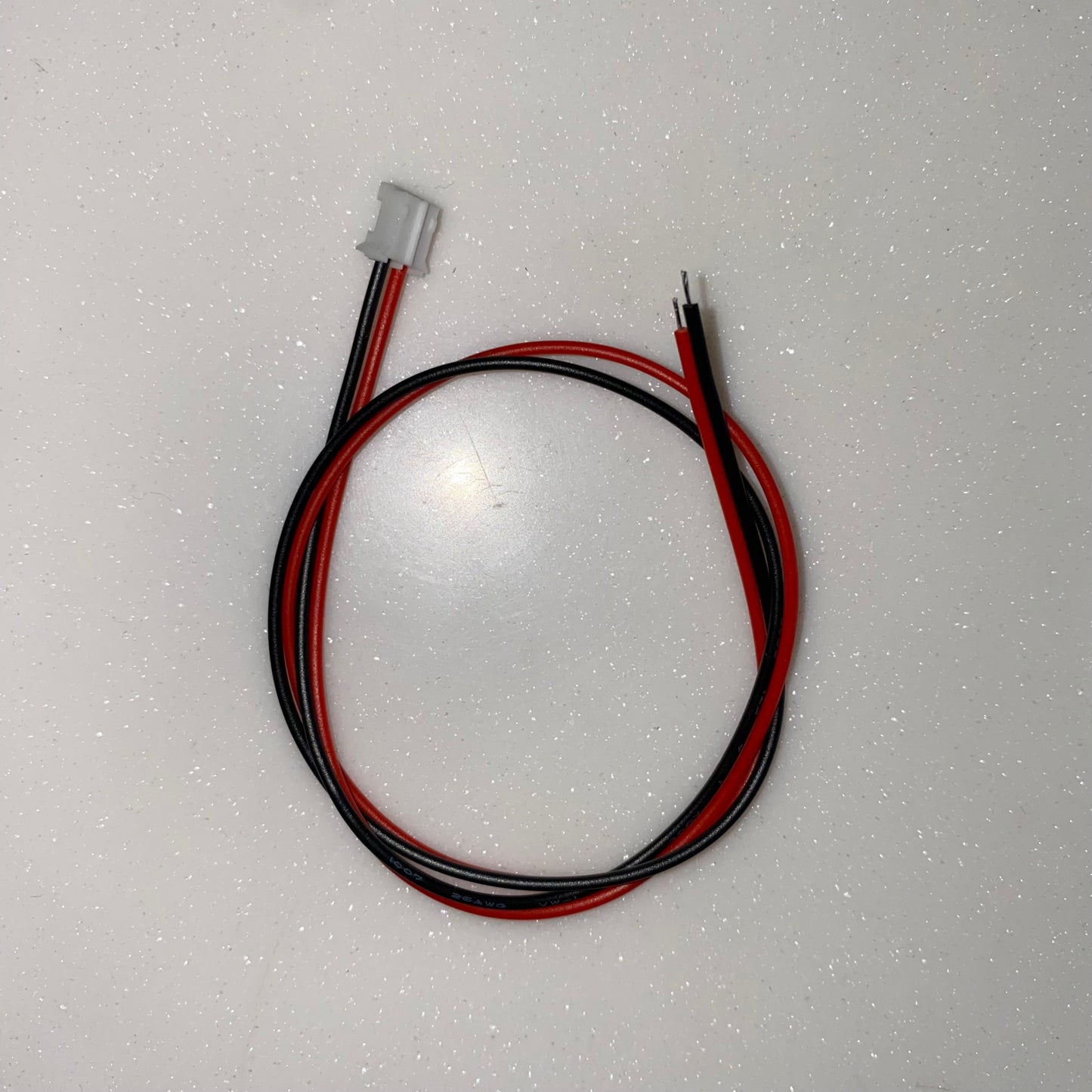

1 x 2 pin power cable
