iBMS for SBMS Standalone

iBMS for SBMS Standalone

Regular price $314.00 AUD
Regular price Sale price $314.00 AUD
Sale Sold out
Shipping calculated at checkout.

This supports boards Electrodacus SBMS boards using the 16 pin connector.

Standalone version, no Multi-BMS support at reduced cost.
Can be upgrade to Multi-BMS later for a fee.

iBMS: Interface for BMS

This all new Interface is designed with many features:

  • Supports Most Inverters with CAN communications, profiles for: BYD, Deye, Generic, Goodwe, Pylon, LIA (beta), Victron: with Type A cable
  • New iBMS firmware completely written in esp-idf using 100% my own code, no more esp-home.

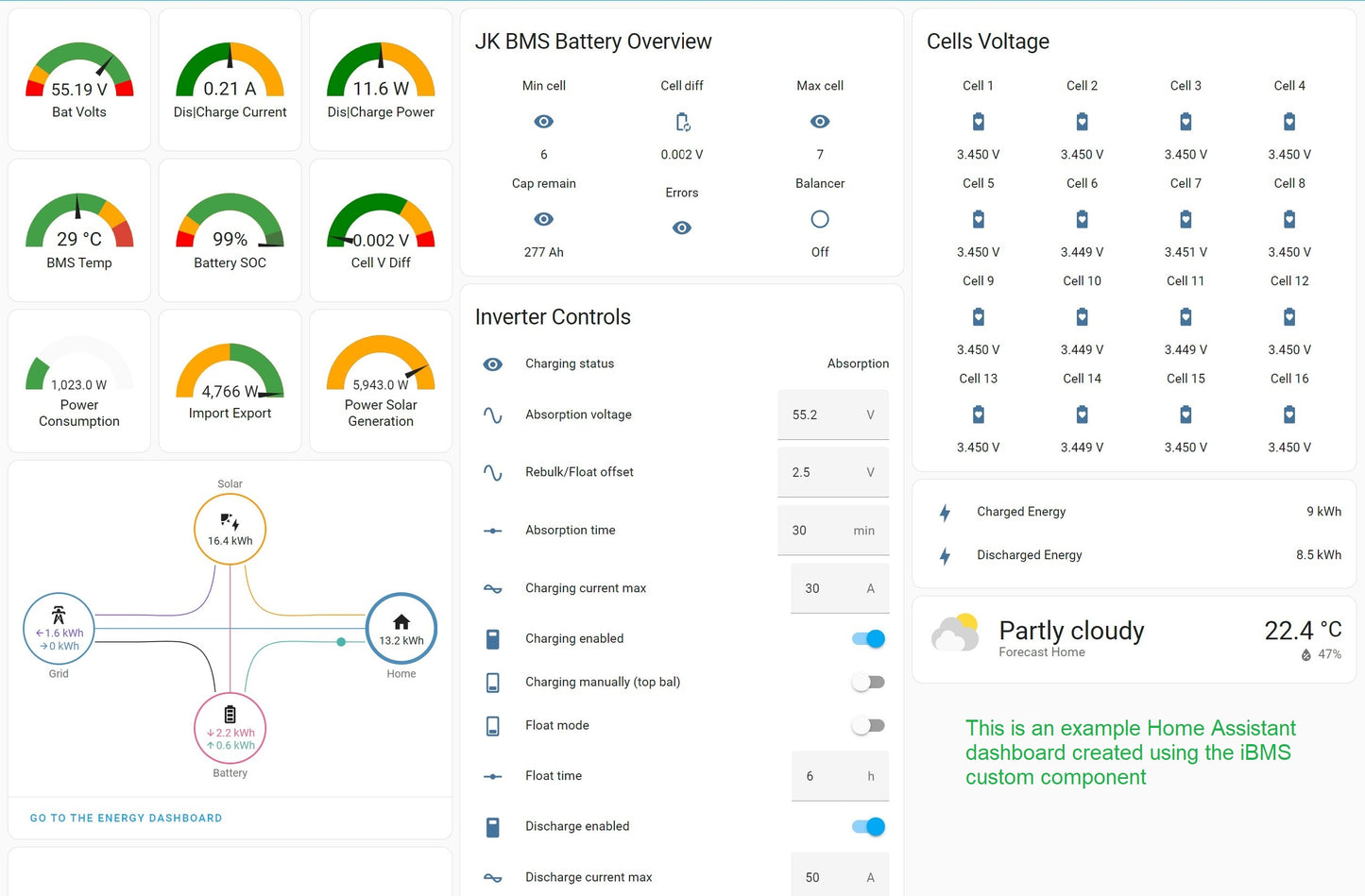

  • New companion Home Assistant integration(custom component must be installed)

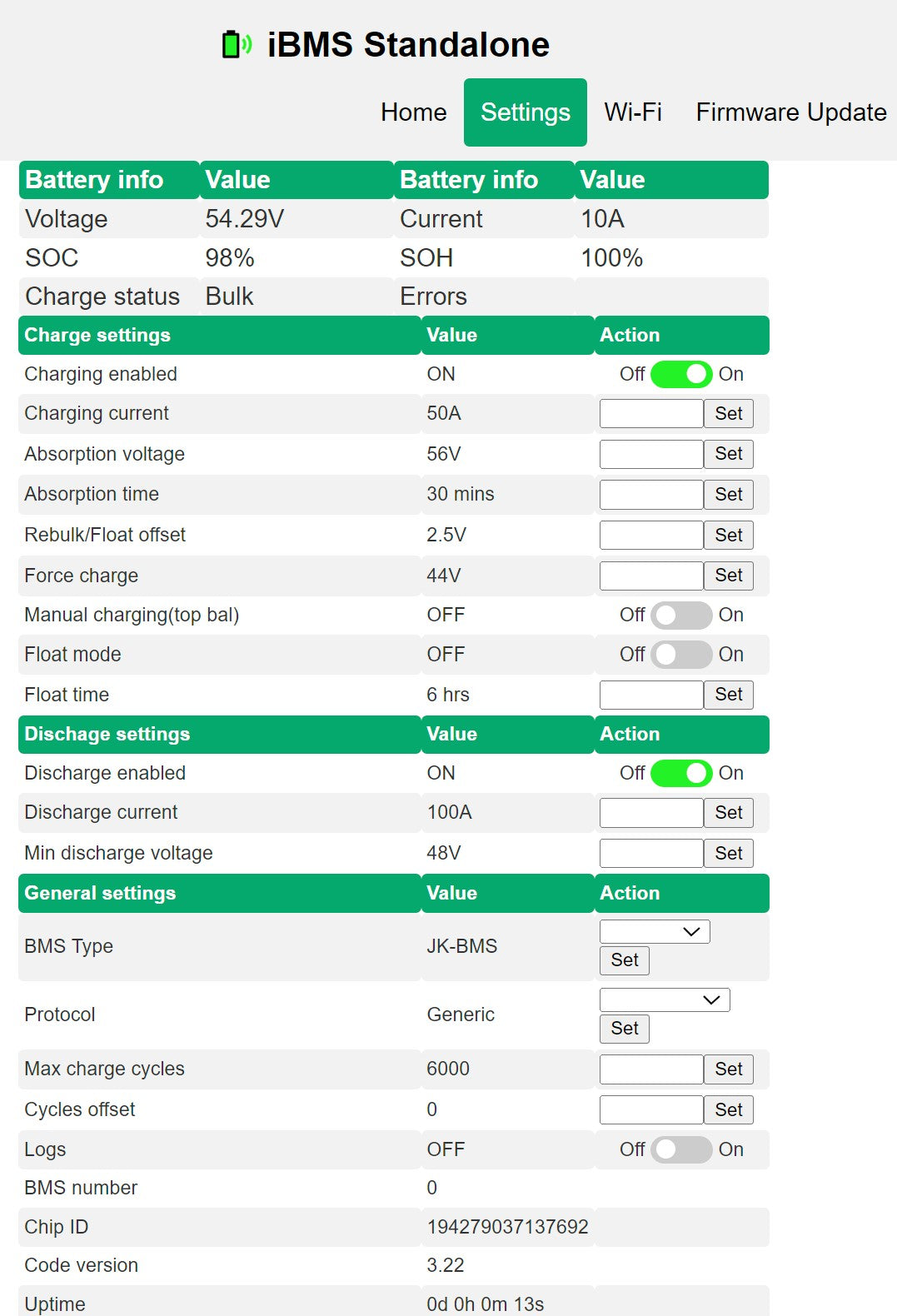

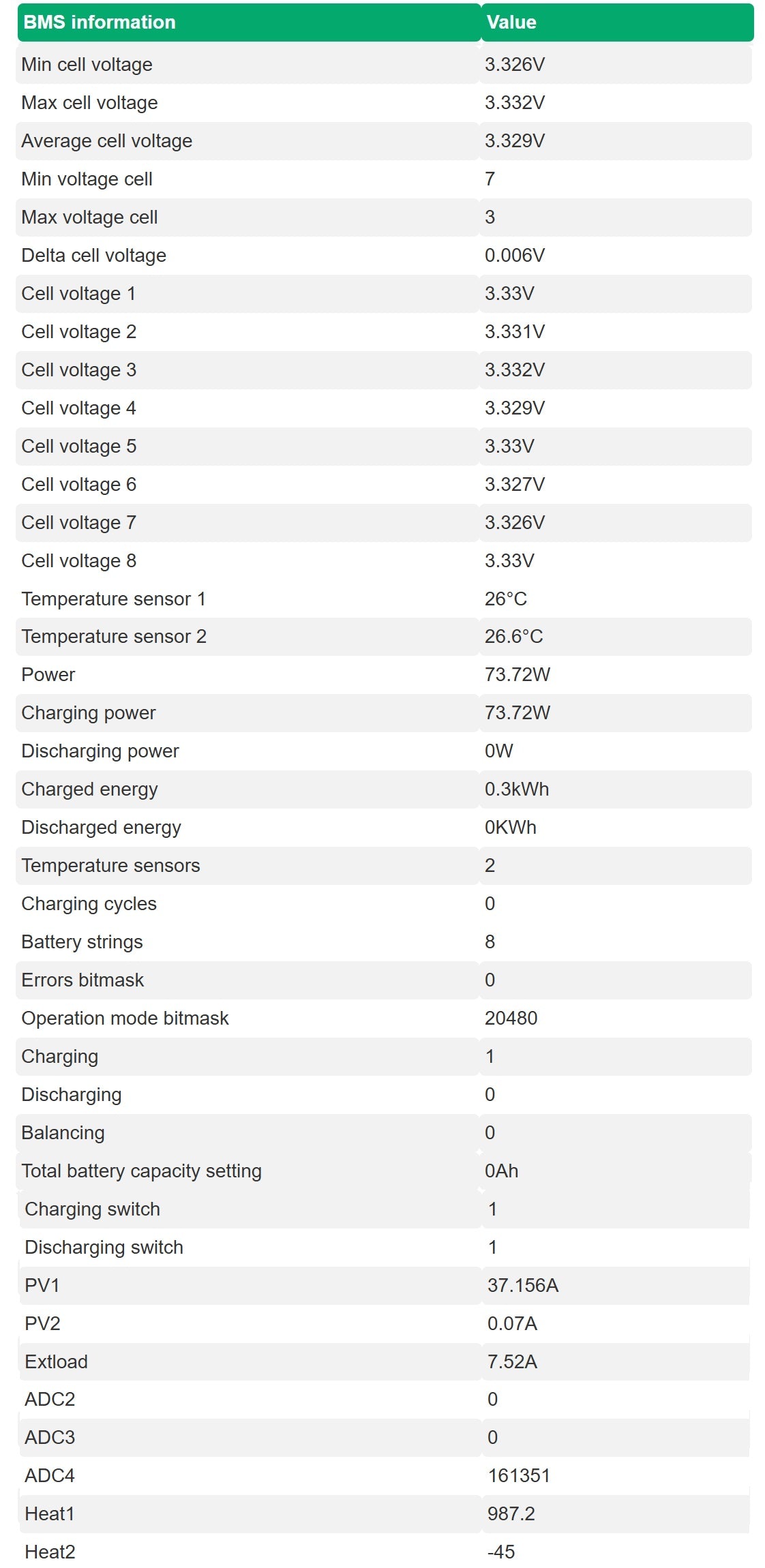

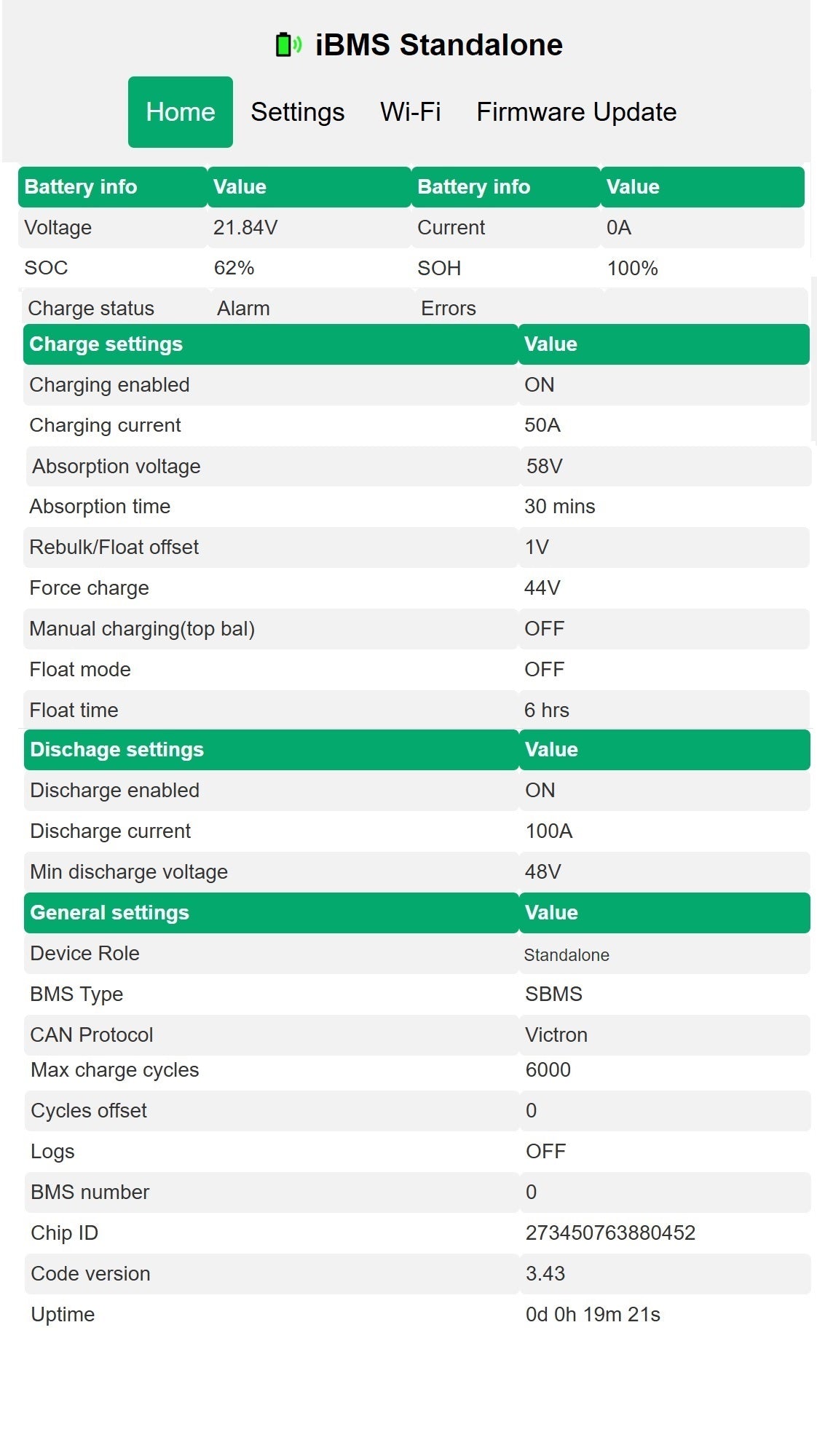

  • Web page designed for mobile phone size screens
  • Standalone use, 1 BMS only.

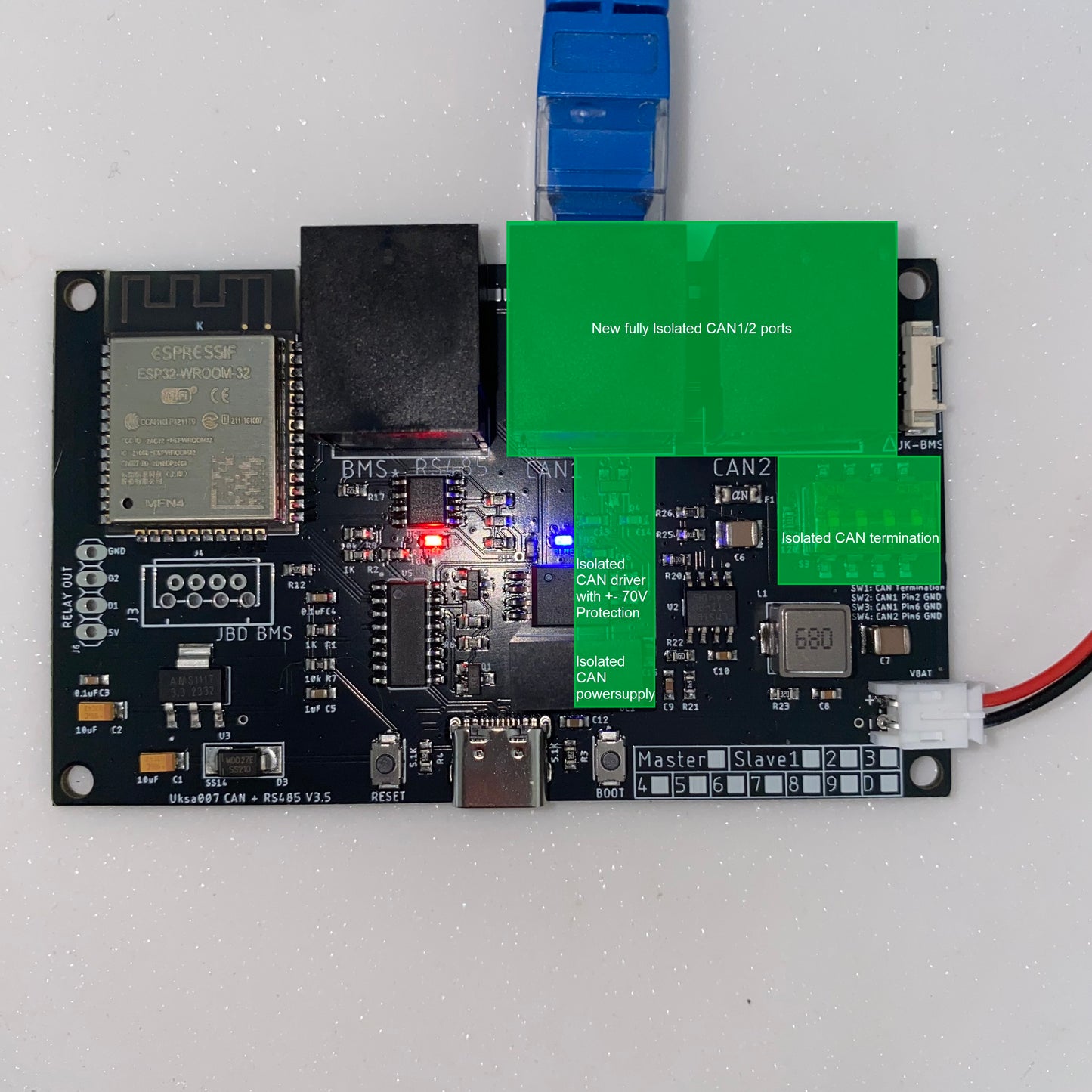

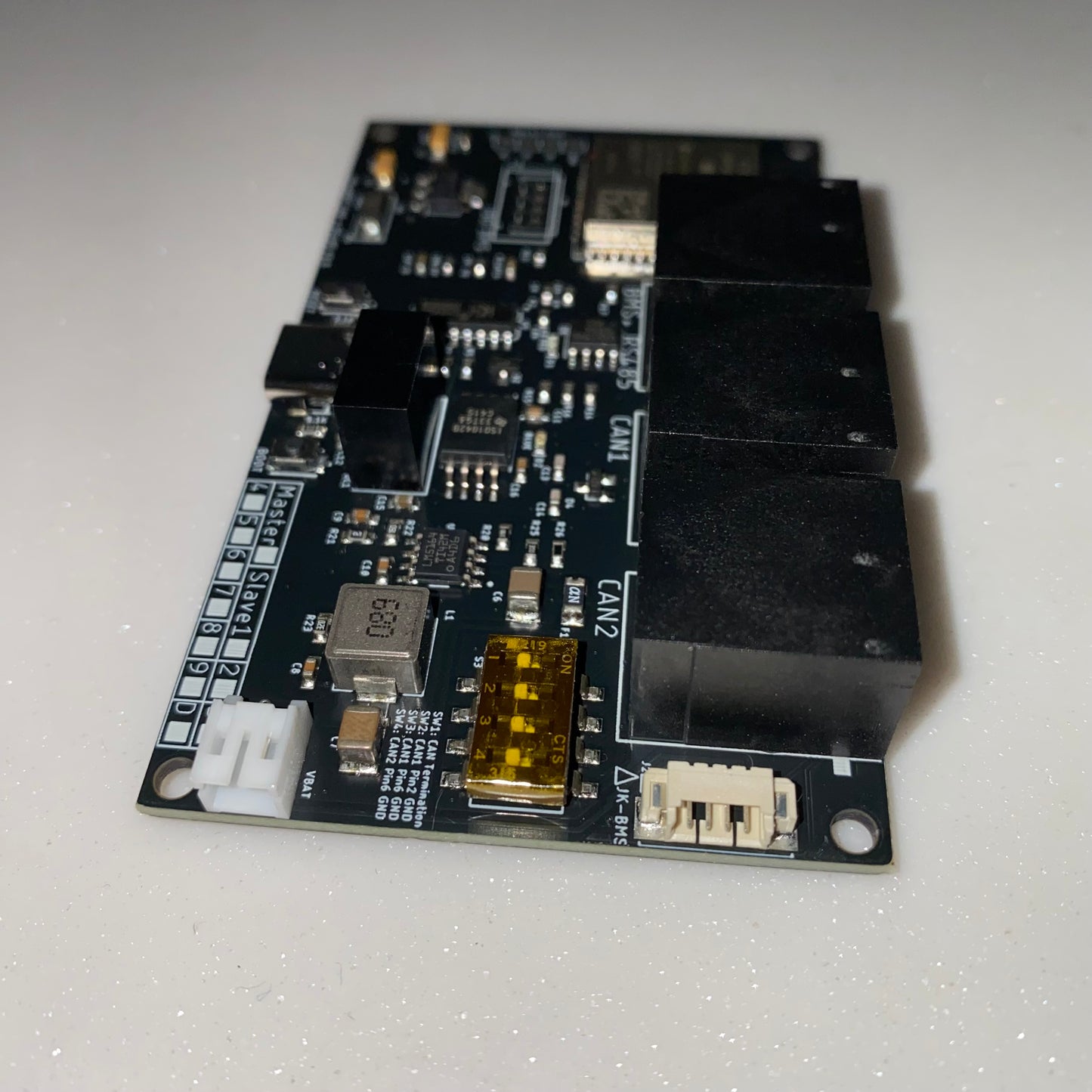

  • DIP switches to enable CAN termination.
  • Improved CAN bus driver chip
  • TVS Transient voltage suppression, to protect the CAN driver chip.
  • On board buck converter with resettable fuse.
  • Note: must be powered direct from battery 12-60v, with the included cable.
  • Professionally manufactured and burn in testing.
  • Lead free construction, greener and low environmental impact!

Supports most of the SBMS models with the 16 pin connector:
SBMS0, SBMS40, SBMS120

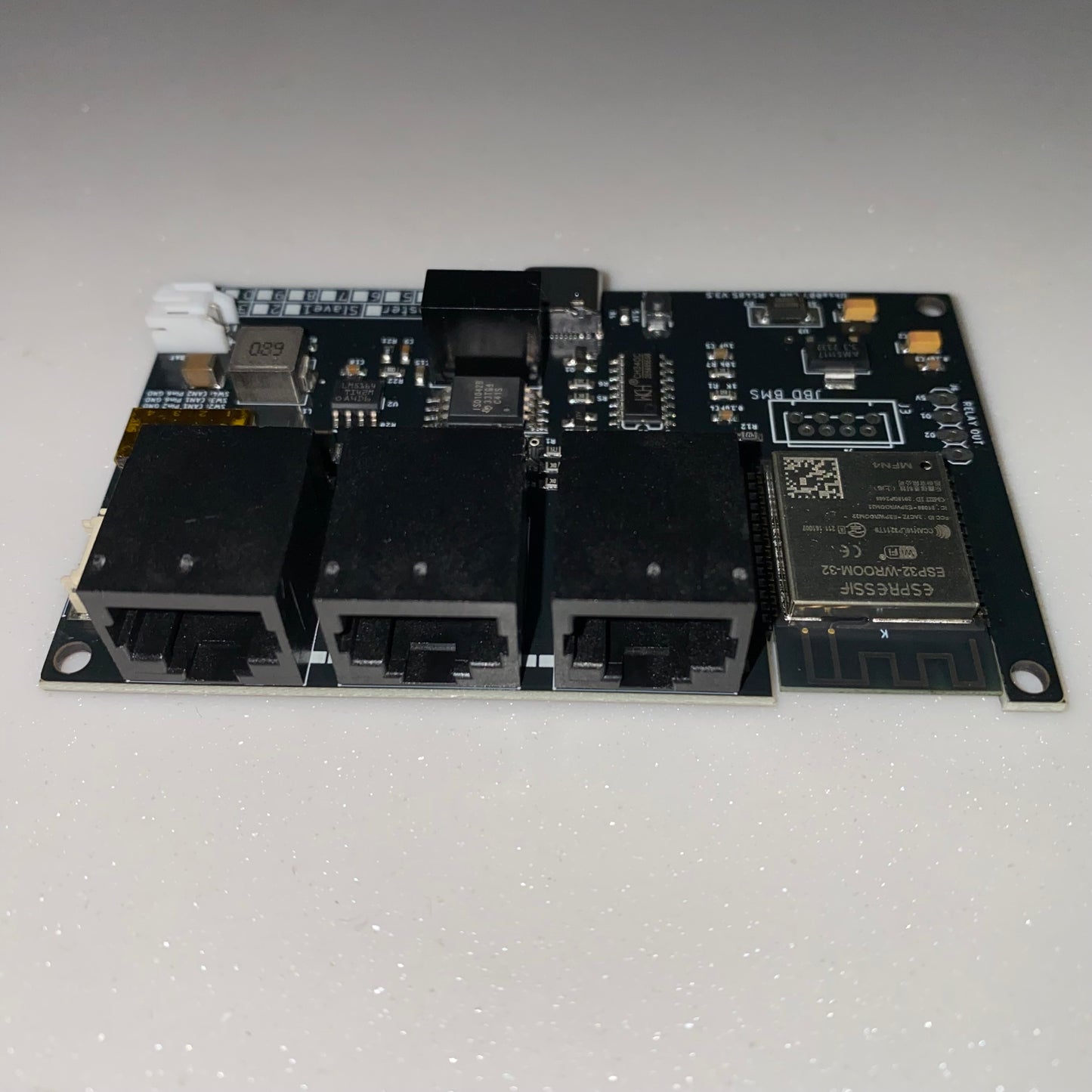

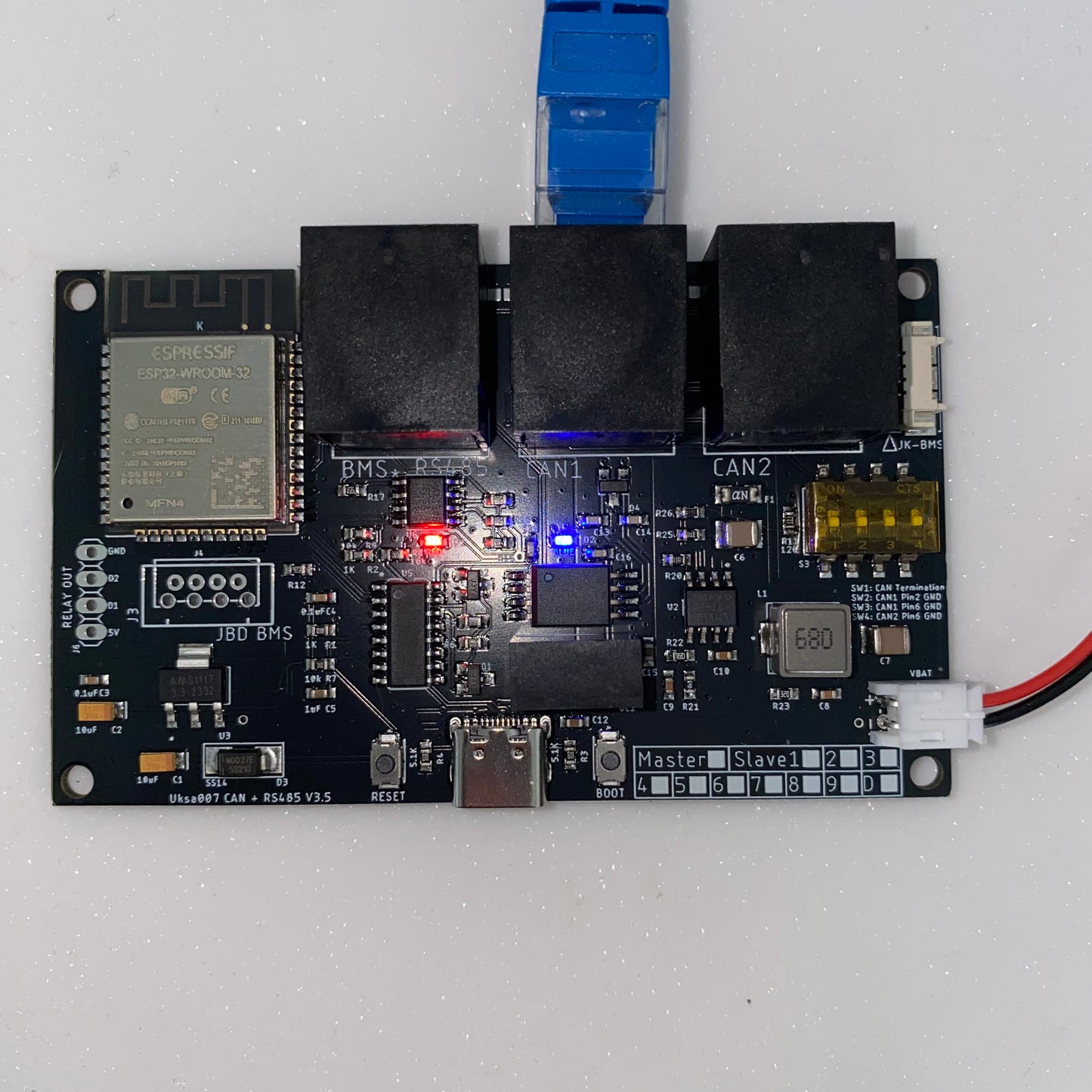

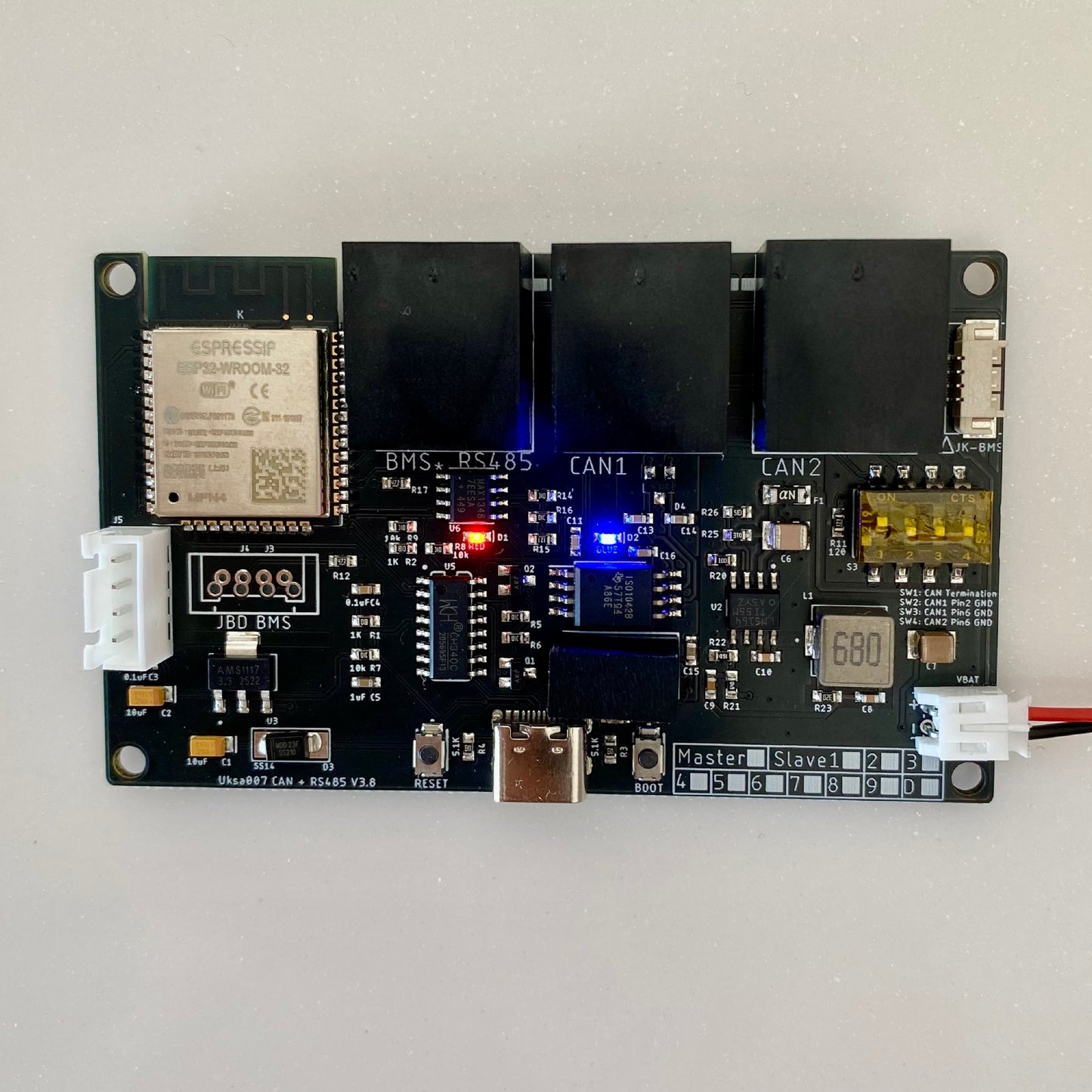

Hardware connectors:
1x 4 Pin JST connector for SBMS cable assembly
2 x RJ45 CAN for connection to Inverter/slaves

What's included:

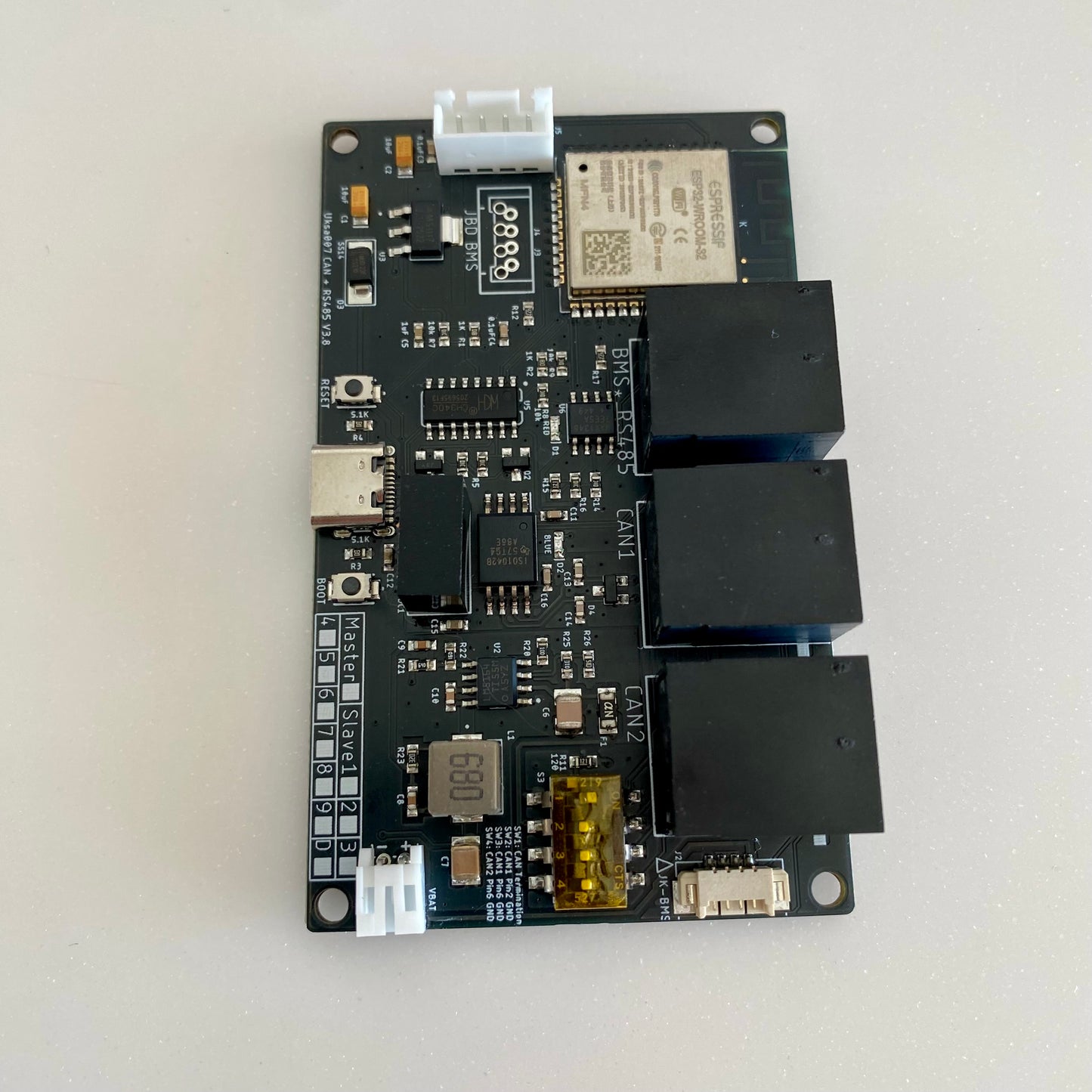

1 x iBMS interface board
1 x 16 pin connector to 4 pin cable assembly
