iBMS for JK-BMS Isolated Multi-BMS

iBMS: Interface for BMS
Isolated CAN1/2 for Multi-BMS

This all new Interface is designed with many features:

• Updated design specifically for Muli-BMS use with Isolated CAN1/2 ports, dedicated Isolated CAN Power supply and new Isolated CAN driver with +-70 bus fault protection.
• Supports Most Inverters with CAN communications, profiles for: BYD, Deye, Generic, Goodwe, Pylon, LIA (beta), Victron: with Type A cable
• New iBMS firmware completely written in esp-idf using 100% my own code, no more esp-home.
• New companion Home Assistant integration(custom component must be installed)

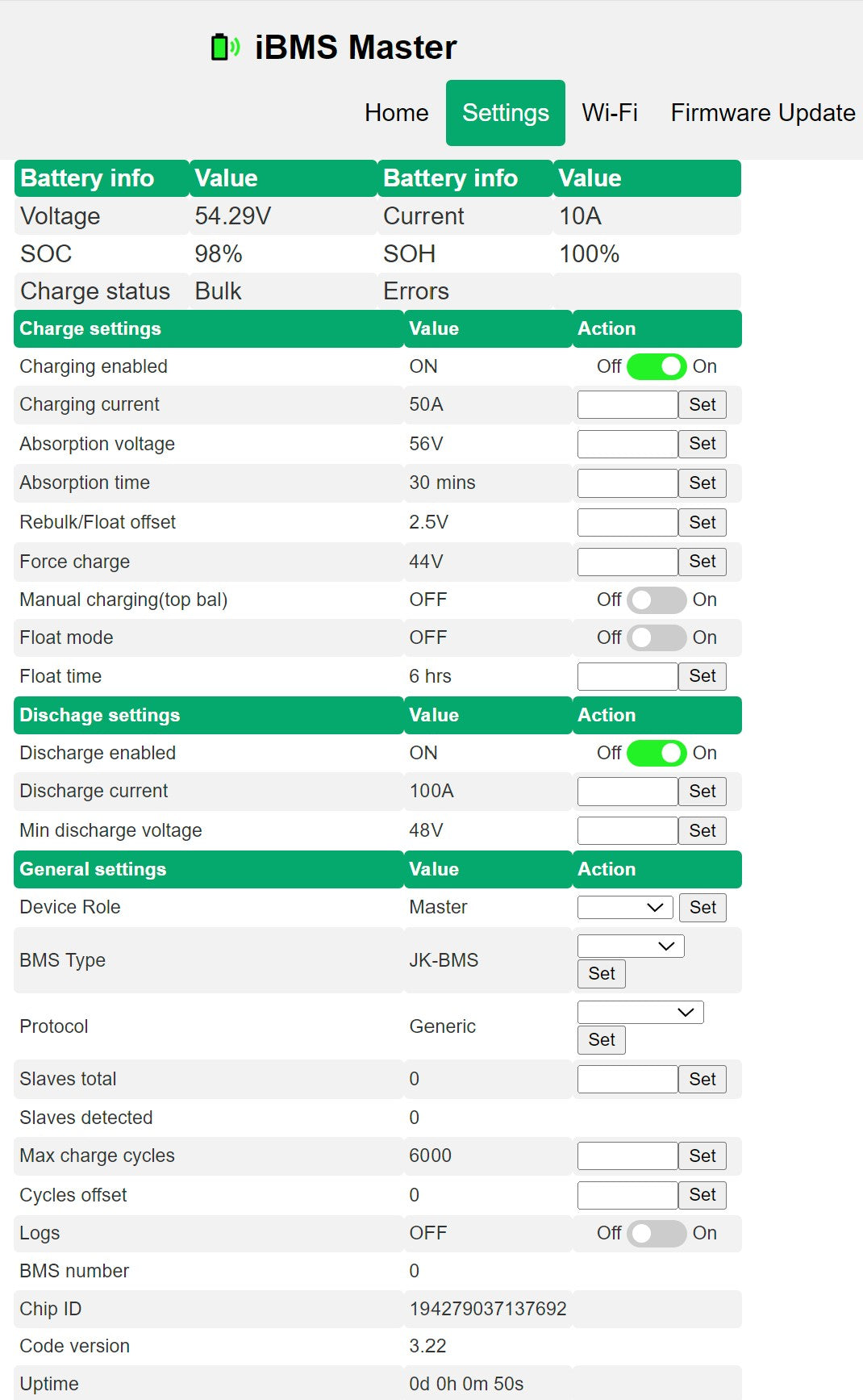

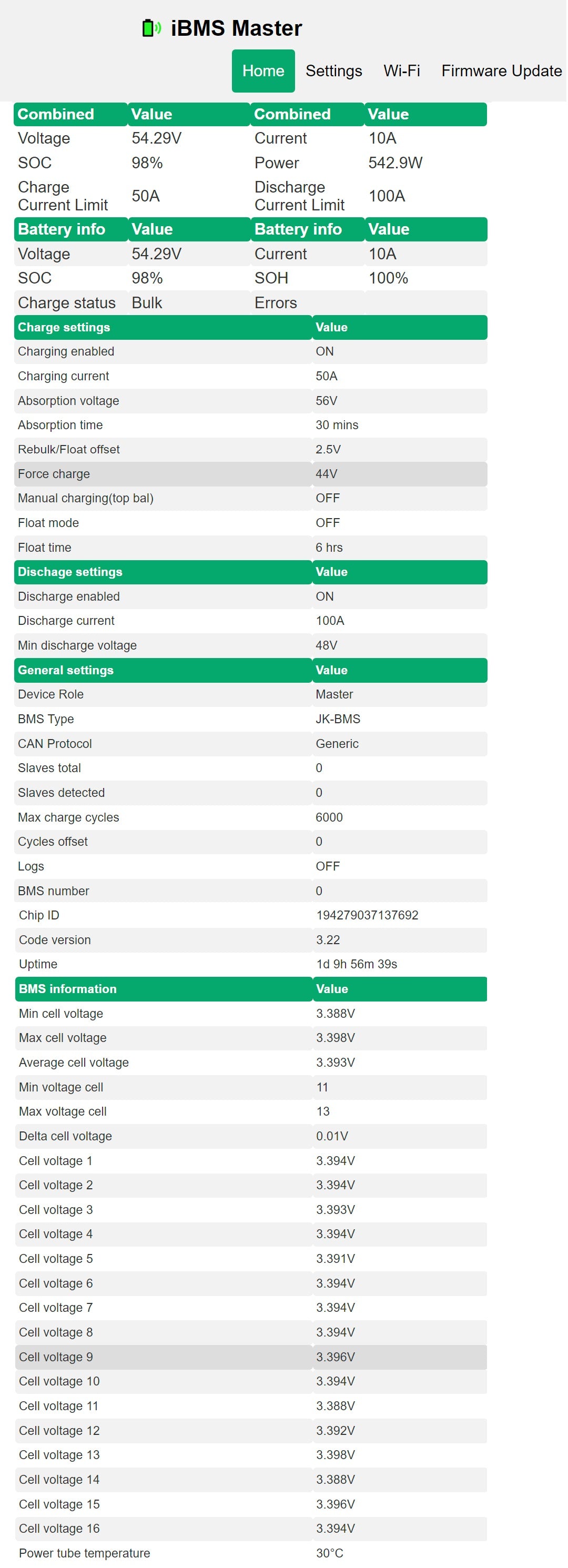

• Web page designed for mobile phone size screens
• The one board can be used with a standalone battery or used in a multi BMS setup, software configurable as a Master or Slave(1-9).  One board needed per BMS
• Future proof, can be used with the original JK-BMS or the new Inverter type.
  One board to rule them all.
• DIP switches to enable CAN termination.
• Improved CAN bus driver chip
• TVS Transient voltage suppression, to protect the CAN driver chip.
• On board buck converter with resettable fuse.

• The original JK-BMS with the 4 pin connecter supplies power to board, plug and play.
• Note: Inverter type, must be powered direct from battery 12-60v, with the included cable. 2 temperature sensors displayed with newer JK-BMS.
• Professionally manufactured and burn in testing.
• Lead free construction, greener and low environmental impact!

Supports most of the original JK-BMS models with the small 4 pin GPS connector eg:
JK-BD6A17S6P/ JK-BD6A20S6P / JK-BD6A24S6P / JK-BD6A20S10P / JK-B1A20S15P / JK-B1A24S15P / JK-B2A8S20P / JK-B2A20S20P / JK-BD2A24S20P / JK-B2A25SRP
Please add cable to your cart, needed for the Original JK-BMS, see below!
1 x 4 pin JST 30cm cable for the original JK-BMS

Supports inverter models:
JK-PB1A16S10P / JK-PB1A16S15P / JK-PB2A16S15P / JK-PB1A16S20P / JK-PB2A16S20P

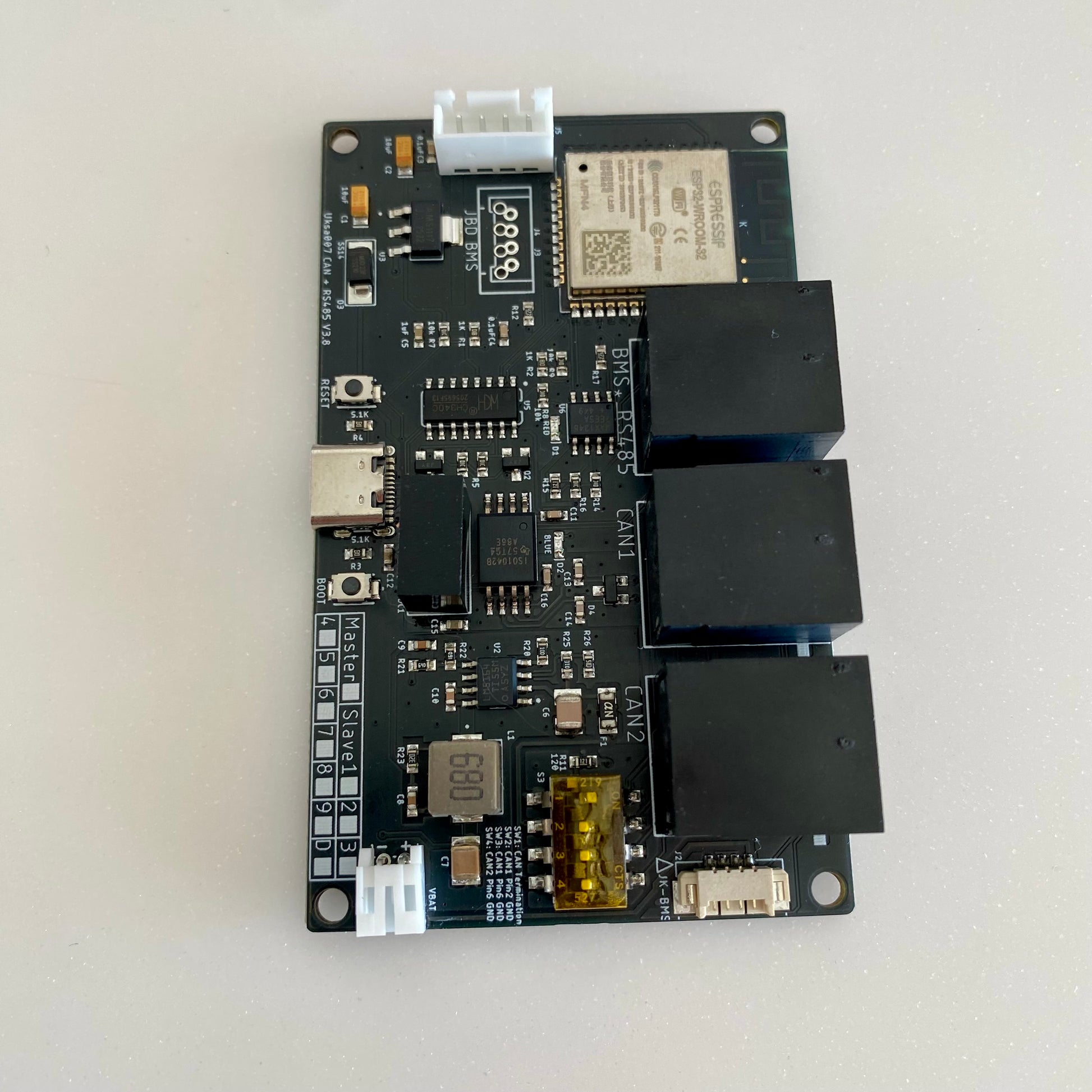

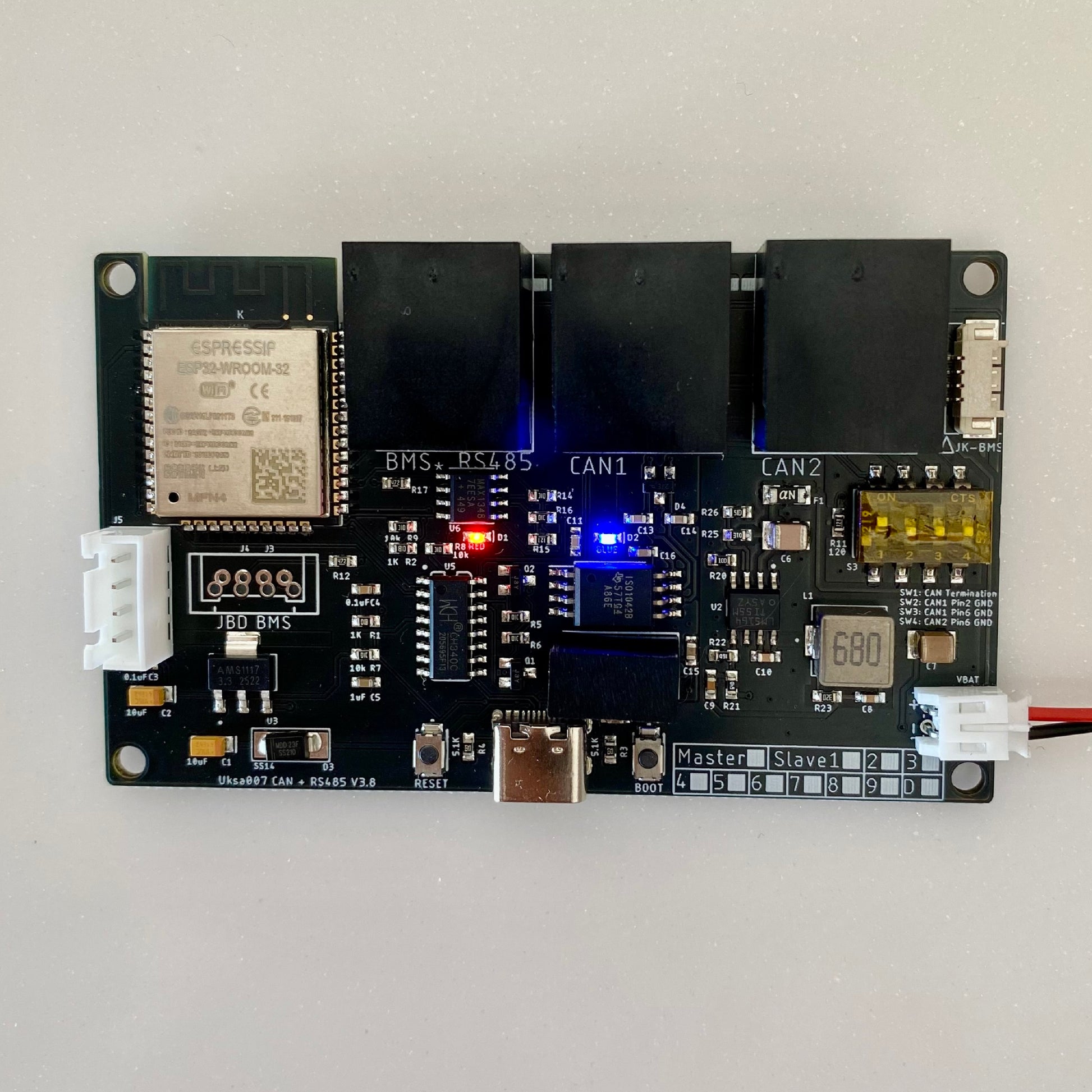

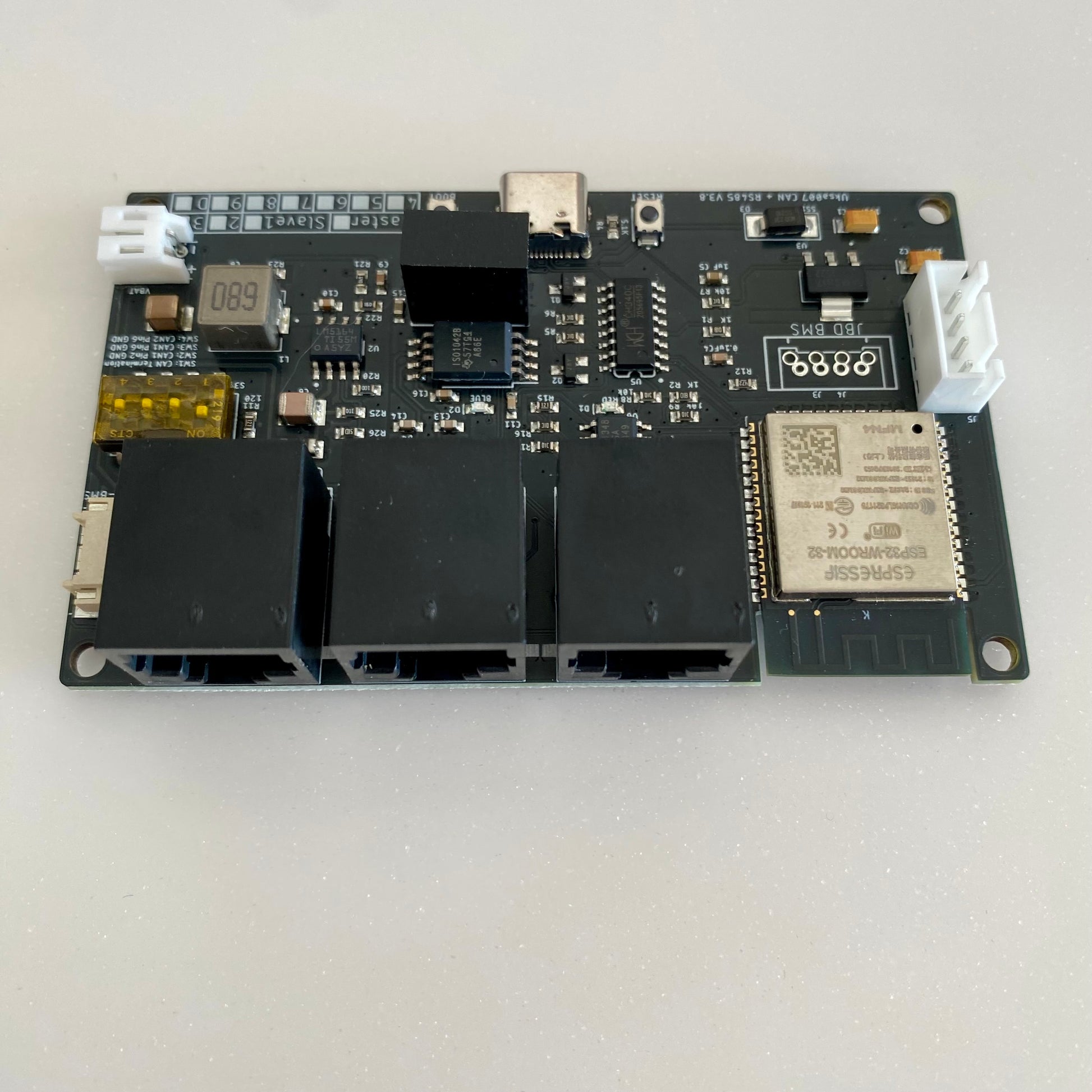

Hardware connectors:
1x 4 Pin JST connector for original JK-BMS
1 x RJ45 RS485 for connection to JK-BMS RS485-1 (beside CAN port)
2 x RJ45 CAN Isolated for connection to Inverter/slaves

What's included:
1 x iBMS interface board
1 x 2 pin power 30cm cable for use with newer inverter type.

Optional add to cart see below:
1 x 4 pin JST 30cm cable for the original BD JK-BMS
