iBMS for CAN battery Multi-BMS

iBMS for CAN battery allows different pre-assembled batteries (eg Gobel Power, Jakiper, Seplos, Pylon batteries) with any BMS that has Pylon CAN output to be monitored and connected with DIY batteries using iBMS board, allowing combined data  and alarms from each BMS to be sent to one Inverter/Victron system.

Can be mixed and matched with my other boards as a slave, eg JK or JBD/Overkill BMS DIY batteries, creating a mix and match with your DIY batteries.

Note: Each Master battery requires its own CAN board.
It is not recommend to parallel batteries with different number of cells and/or different battery chemistry. eg if you have a Pylon battery which are 15s you would be best to match that with a DIY battery( eg JK-BMS/JBD/Seplos) using 15s only.

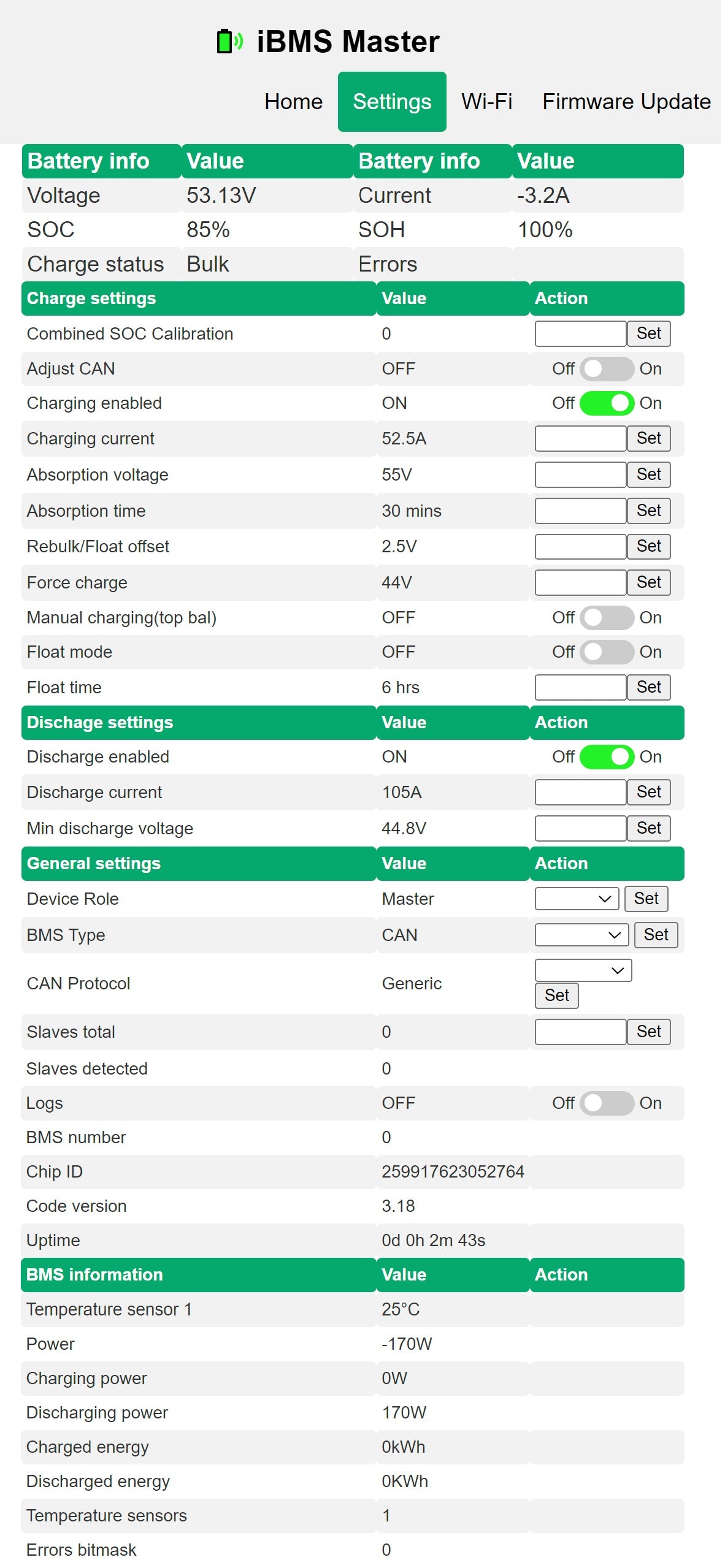

• Allows monitoring of CAN batteries via Web interface and Home Assistant

• Two seperate CAN Controllers, CAN1/2 for connection to inverters/salves
• CAN3 for connection to Pylon protocol CAN battery.
• Can be used standalone to monitor battery or with addition boards(slaves) to combine data from multiple batteries for one inverter/Victron system.
• Can be mixed and matched with my other boards as a slave, eg JK-BMS DIY batteries.
• Supports Most Inverters with CAN communications, profiles for: BYD, Deye, Generic, Goodwe, Pylon, Victron, LIA (beta)
• New iBMS firmware completely written in esp-idf using 100% my own code, no more esp-home.
• New companion Home Assistant integration(custom component must be installed)

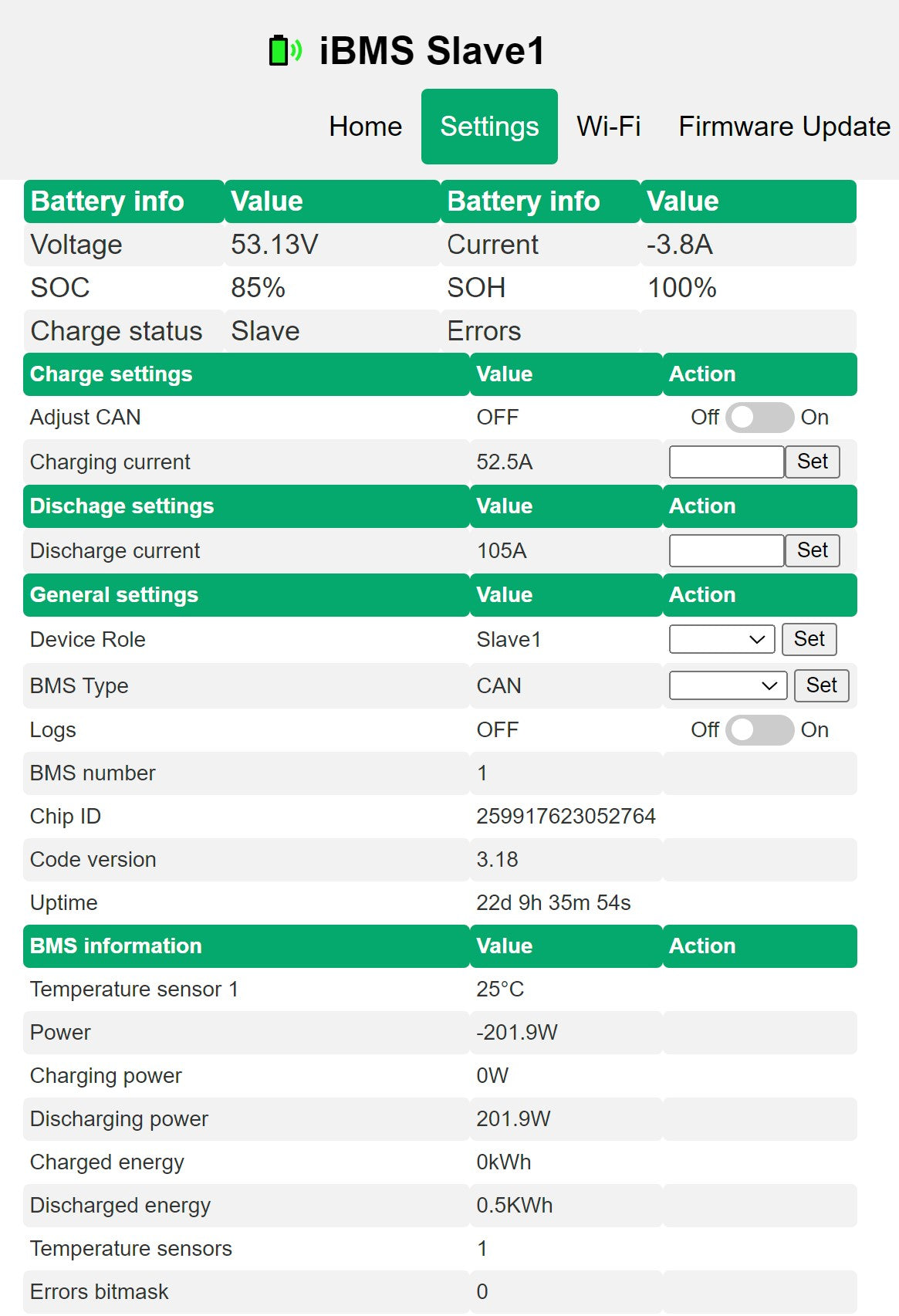

• Web page designed for mobile phone size screens
• The one board can be used with a standalone battery or used in a multi BMS setup, software configurable as a Master or Slave(1-9).  One board needed per BMS

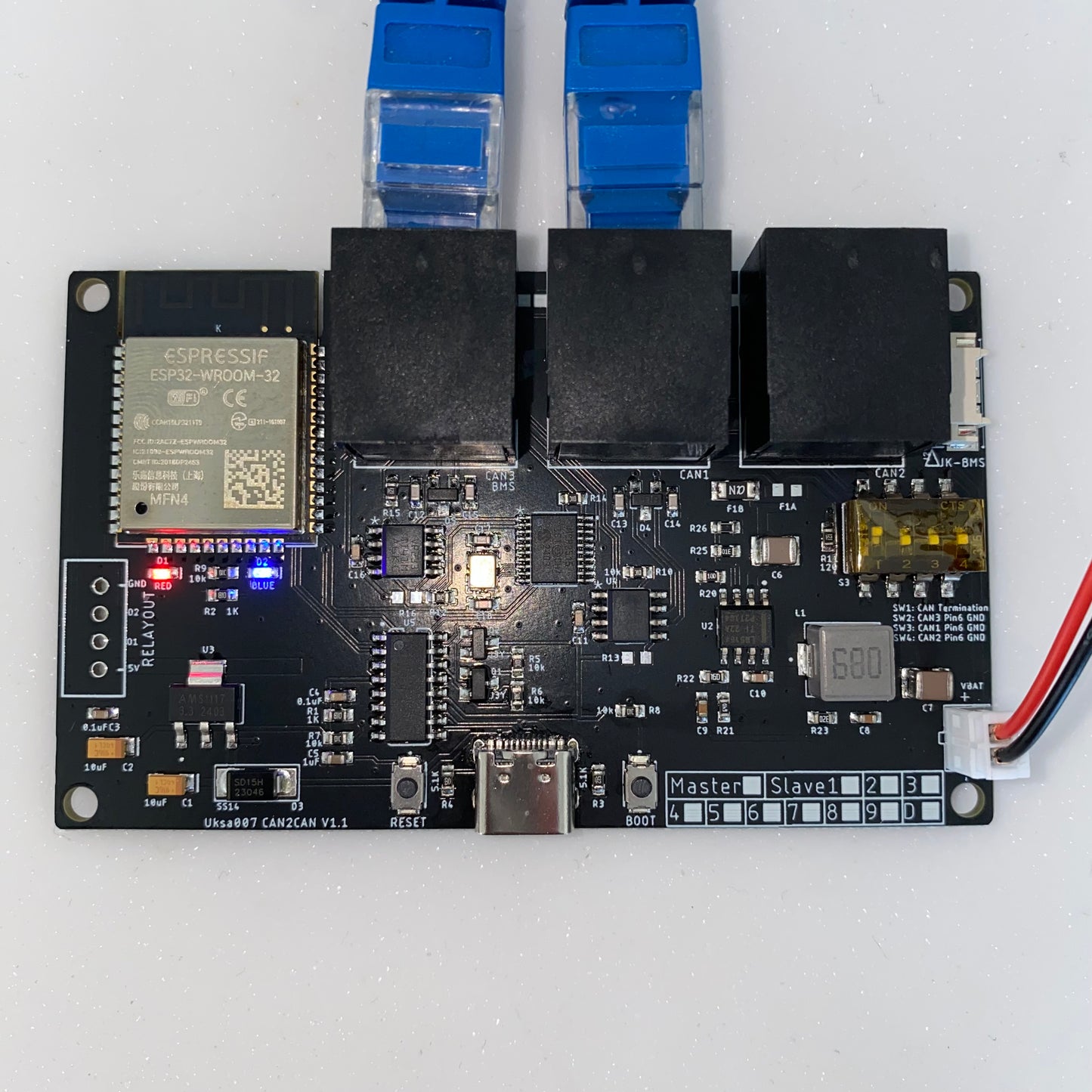

• DIP switches to enable CAN termination.
• Improved CAN bus driver chip
• TVS Transient voltage suppression, to protect the CAN driver chip.
• On board buck converter with resettable fuse, can be powered direct from battery 12-60v

• Professionally manufactured and burn in testing.
• Lead free construction, greener and low environmental impact!

Hardware connectors:

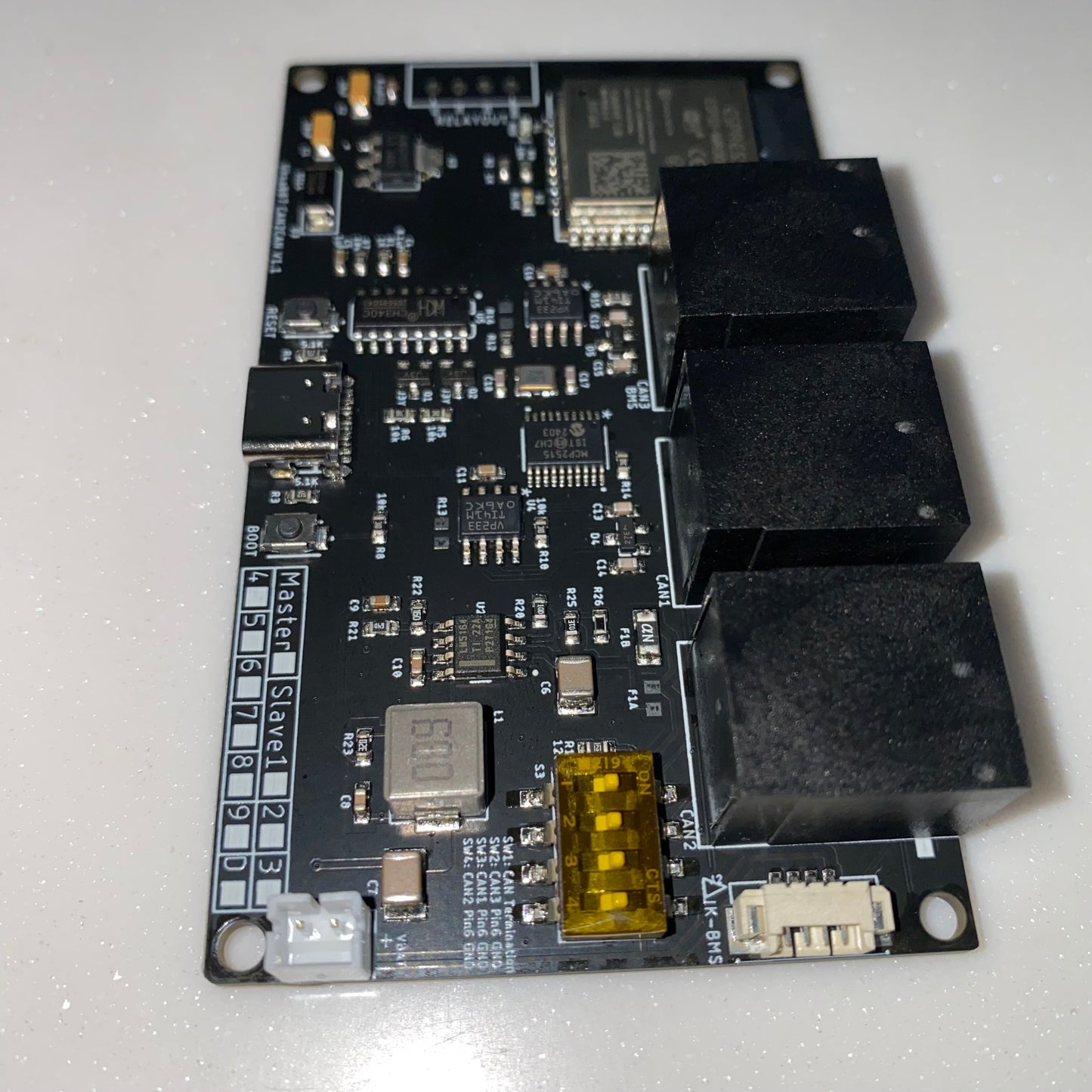

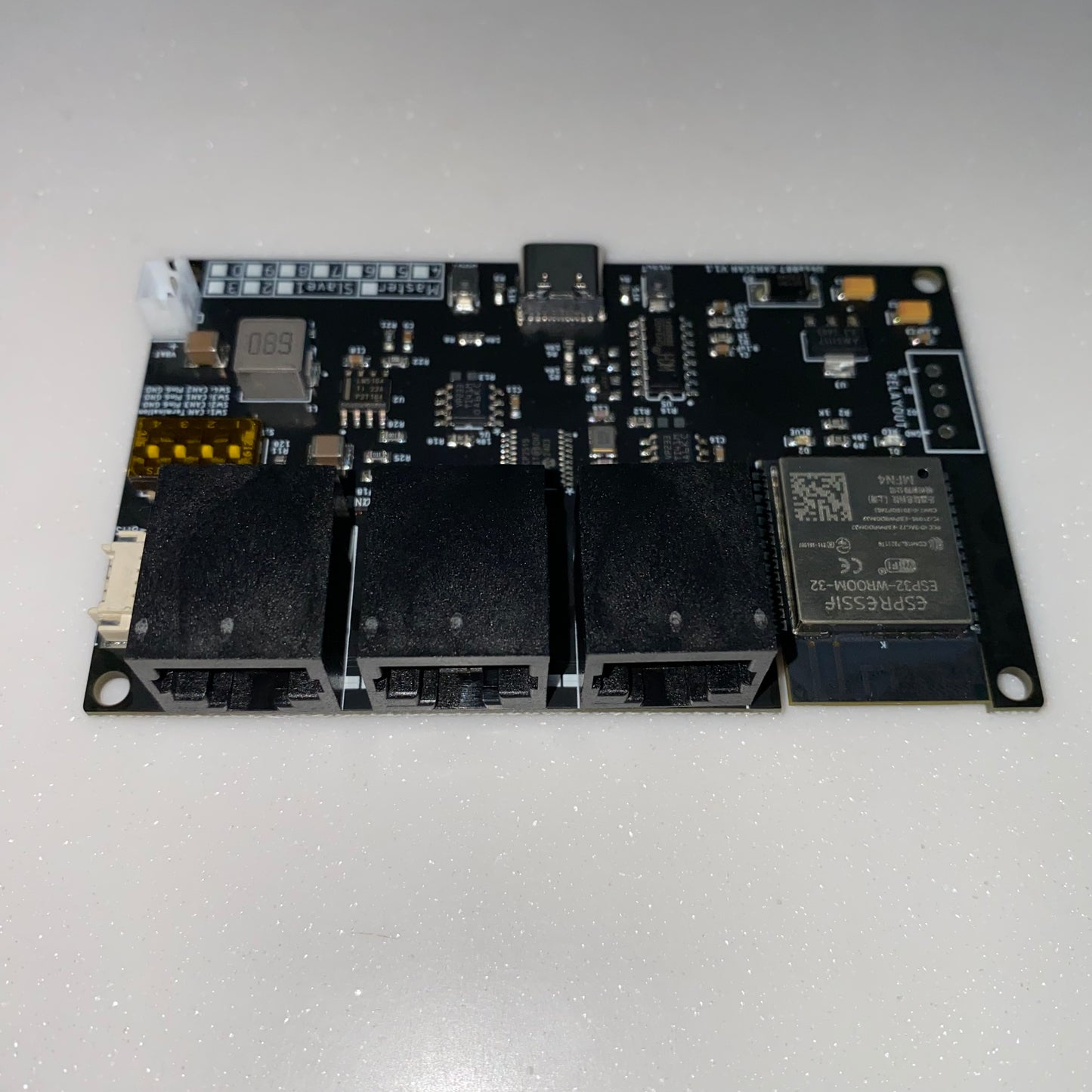

1 x RJ45 CAN for connection to CAN BMS (beside CAN1/2 port)
2 x RJ45 CAN for connection to Inverter/slaves

What's included:
1 x iBMS interface board
1 x 2 pin power 30cm cable for powering the board
